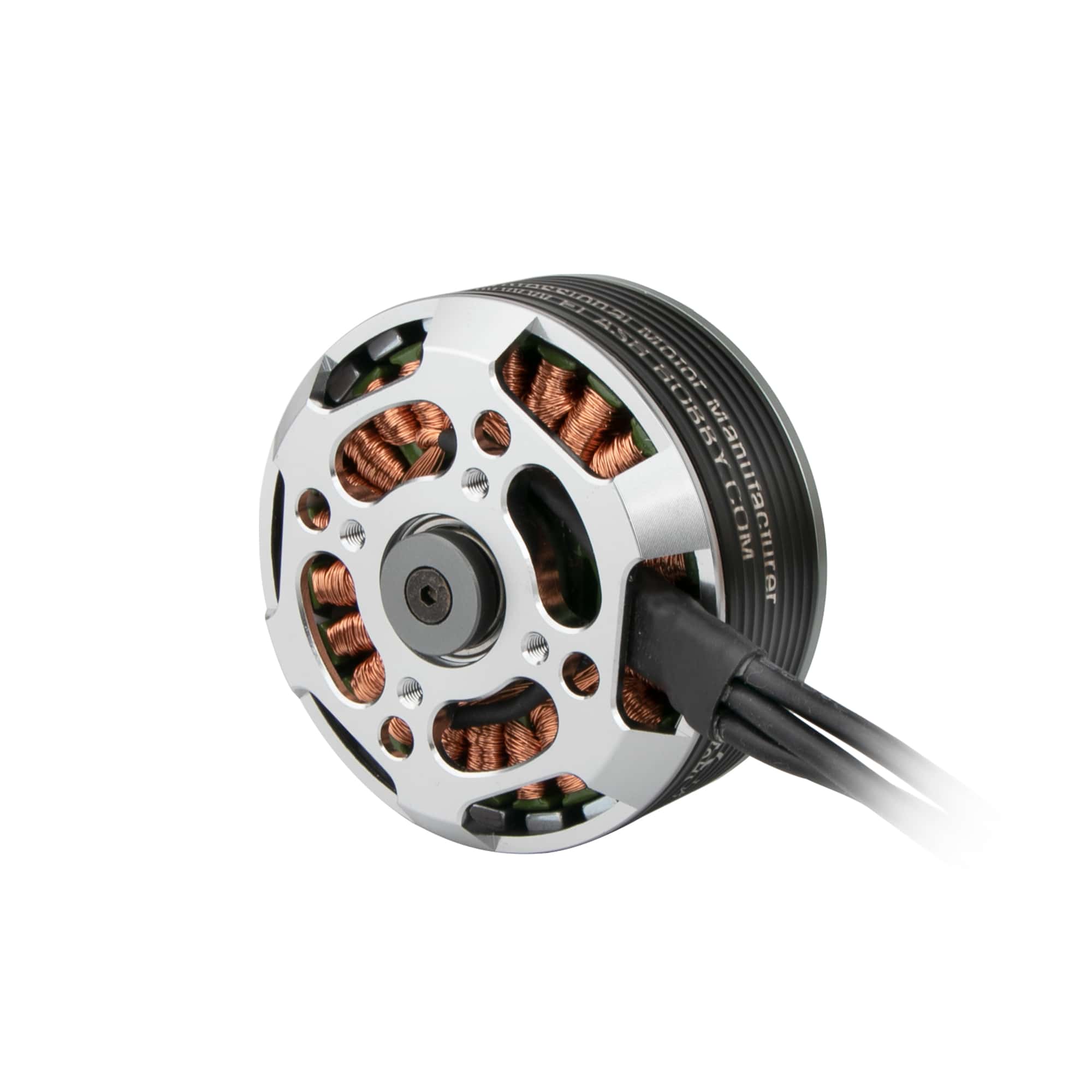

5215 Motor Multi Rotor

5215 RC Brushless Motor untuk Drone FPV, Drone Kelas X, Drone Pertanian

Fitur:
Magnet Tingkat 48SH
Tes Rotor Seimbang Presisi
Desain Motor Torsi Tinggi 12N14P
Bel Aluminium CNC 6061-T6
Bantalan Impor RPM Tinggi (NSK/NMB).
Gulungan Kawat Tembaga Tahan Suhu Tinggi

âBerat: 289,0g (termasuk kabel)
âUkuran Motor: 60 x 35mm
âDiameter Poros: 4.0mm
âMotor Mount: 19*25mm(M3*4)
âKonfigurasi: 24N22P
âKabel Motor: 18#AWG 220mm
âNilai KV: 340KVatau KV yang disesuaikan
âDirekomendasikan: aplikasi penyangga 17~22 inci

Spesifikasi Motor MT5215-340KV
Max pullï¼5360g
Volt ï¼24.0V(6S)
ESC yang disarankan: 50A~60A
Daya Maksimum: 1039,2W

Menopang yang disarankan: Prop CF1755TM, CF1855TM,CF2055TM Inch

MT5215-340KV
Menopang（inci）	Mencekik（%）	Tegangan（V）	Muat Arus（A）	Daya (W)	Tarik(g)	Efisiensi (g/W)	Suhu (dalam beban throttle penuh 1 menit)
CF1755TM	50%	24.0	5.9	141.6	1290	9.11	58℃
	55%	24.0	8	192.0	1620	8.44
	57%	24.0	10	240.0	1890	7.88
	61%	24.0	12	288.0	2170	7.53
	63%	24.0	14	336.0	2410	7.17
	66%	24.0	16	384.0	2610	6.80
	68%	24.0	18	432.0	2820	6.53
	71%	24.0	20	480.0	3060	6.38
	74%	24.0	22	528.0	3280	6.21
	76%	24.0	24	576.0	3420	5.94
	78%	24.0	26	624.0	3610	5.79
	80%	24.0	28	672.0	3810	5.67
	84%	24.0	30	720.0	4020	5.58
	100%	24.0	31.9	765.6	4190	5.47
CF1855TM	47%	24.0	6	144.0	1340	9.31	65℃
	51%	24.0	8	192.0	1680	8.75
	54%	24.0	10	240.0	1940	8.08
	56%	24.0	12	288.0	2210	7.67
	59%	24.0	14	336.0	2470	7.35
	61%	24.0	16	384.0	2720	7.08
	64%	24.0	18	432.0	2950	6.83
	65%	24.0	20	480.0	3110	6.48
	67%	24.0	22	528.0	3390	6.42
	70%	24.0	24	576.0	3550	6.16
	72%	24.0	26	624.0	3710	5.95
	74%	24.0	28	672.0	3920	5.83
	76%	24.0	30	720.0	4110	5.71
	79%	24.0	32	768.0	4290	5.59
	100%	24.0	37.5	900.0	4680	5.20
CF2055TM	50%	24.0	7.6	182.4	1720	9.43	73℃
	53%	24.0	10	240.0	2030	8.46
	55%	24.0	12	288.0	2280	7.92
	58%	24.0	14	336.0	2510	7.47
	60%	24.0	16	384.0	2800	7.29
	62%	24.0	18	432.0	3070	7.11
	64%	24.0	20	480.0	3240	6.75
	66%	24.0	22	528.0	3460	6.55
	68%	24.0	24	576.0	3650	6.34
	69%	24.0	26	624.0	3800	6.09
	72%	24.0	28	672.0	4020	5.98
	73%	24.0	30	720.0	4190	5.82
	76%	24.0	32	768.0	4380	5.70
	77%	24.0	34	816.0	4570	5.60
	79%	24.0	36	864.0	4730	5.47
	100%	24.0	43.3	1039.2	5360	5.16
CF2260TM	47%	24.0	8	192.0	1860	9.69	PANAS
	49%	24.0	10	240.0	2210	9.21
	51%	24.0	12	288.0	2510	8.72
	54%	24.0	14	336.0	2730	8.13
	56%	24.0	16	384.0	2980	7.76
	57%	24.0	18	432.0	3230	7.48
	59%	24.0	20	480.0	3450	7.19
	61%	24.0	22	528.0	3680	6.97
	62%	24.0	24	576.0	3920	6.81
	63%	24.0	26	624.0	4090	6.55
	65%	24.0	28	672.0	4270	6.35
	67%	24.0	30	720.0	4460	6.19
	68%	24.0	32	768.0	4630	6.03
	70%	24.0	34	816.0	4810	5.89
	72%	24.0	36	864.0	4980	5.76
	74%	24.0	38	912.0	5120	5.61
	75%	24.0	40	960.0	5380	5.60
	76%	24.0	42	1008.0	5520	5.48
	79%	24.0	44	1056.0	5720	5.42
	100%	24.0	53.1	1274.4	6460	5.07
