3510 Motor DC Tanpa Sikat
3510 Motor DC Tanpa Sikat

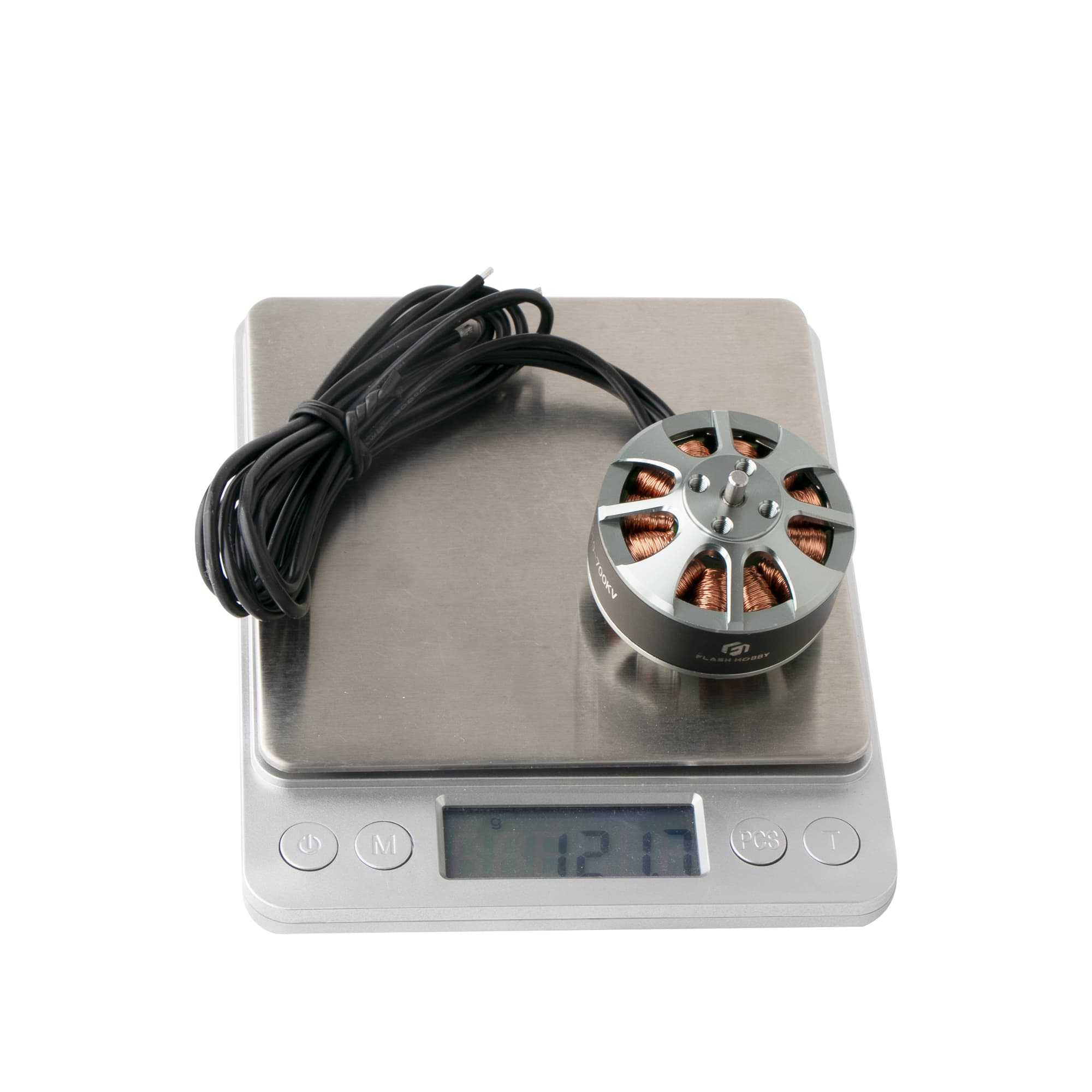

●Berat: 120,0g (termasuk kabel)
●Ukuran Motor: 42 x 28,4 mm
●Diameter Poros: 4,0 mm
●Pemasangan Motor: 19*25mm(M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 18#AWG 220mm
●Nilai KV: 360KV, 600KV dan 700KV atau KV khusus
●Direkomendasikan: Aplikasi pendukung 12~15" inci
●Berat: 120,0g (termasuk kabel)
●Ukuran Motor: 42 x 28,4 mm
●Diameter Poros: 4,0 mm
●Pemasangan Motor: 19*25mm(M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 18#AWG 220mm
●Nilai KV: 360KV, 600KV dan 700KV atau KV khusus
●Direkomendasikan: Aplikasi pendukung 12~15" inci
Model:MT3510
mengirimkan permintaan
Deskripsi Produk
3510 Motor DC Tanpa Sikat
Fitur Motor DC Tanpa Sikat 3510:
Magnet Tingkat 48SH
Uji Rotor Seimbang Presisi
Desain Motor Torsi Tinggi 12N14P
Bel Aluminium CNC 6061-T6
Bantalan Impor RPM Tinggi (NSK/NMB).
Gulungan Kawat Tembaga Tahan Suhu Tinggi
●Berat: 120,0g (termasuk kabel)
●Ukuran Motor: 42 x 28,4 mm
●Diameter Poros: 4,0 mm
●Pemasangan Motor: 19*25mm(M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 18#AWG 220mm
●Nilai KV: 360KV, 600KV dan 700KV atau KV khusus
●Rekomendasikan: aplikasi penyangga 12~15" inci
Spesifikasi Motor MT3508 360KV
Tarikan maksimal：2030g
Volt: 24.0V(6S)
ESC yang disarankan: 20A~40A
Daya Maksimum: 333,6W
Menopang yang Disarankan: Prop CF1238TM, CF1447TM dan CF1555TM
| MT3510-360KV | |||||||
| Menopang（inci） | Mencekik（%） | Tegangan（V） | Beban Saat Ini（A） | Kekuatan (W) | Tarik(g) | Efisiensi (g/W) | Suhu (dalam beban throttle penuh 1 menit) |
| CF1447 | 50% | 16.0 | 1 | 16.0 | 270 | 16.88 | 40℃ |
| 59% | 16.0 | 2 | 32.0 | 430 | 13.44 | ||
| 66% | 16.0 | 3 | 48.0 | 560 | 11.67 | ||
| 73% | 16.0 | 4 | 64.0 | 670 | 10.47 | ||
| 79% | 16.0 | 5 | 80.0 | 770 | 9.63 | ||
| 100% | 16.0 | 6.3 | 100.8 | 930 | 9.23 | ||
| CF1555TM | 50% | 16.0 | 1.2 | 19.2 | 310 | 16.15 | 45℃ |
| 56% | 16.0 | 2 | 32.0 | 450 | 14.06 | ||
| 62% | 16.0 | 3 | 48.0 | 580 | 12.08 | ||
| 67% | 16.0 | 4 | 64.0 | 720 | 11.25 | ||
| 73% | 16.0 | 5 | 80.0 | 810 | 10.13 | ||
| 78% | 16.0 | 6 | 96.0 | 950 | 9.90 | ||
| 100% | 16.0 | 7.7 | 123.2 | 1110 | 9.01 | ||
| CF1447 | 50% | 24.0 | 1.9 | 45.6 | 540 | 11.84 | 48℃ |
| 56% | 24.0 | 3 | 72.0 | 730 | 10.14 | ||
| 59% | 24.0 | 4 | 96.0 | 860 | 8.96 | ||
| 66% | 24.0 | 6 | 144.0 | 1130 | 7.85 | ||
| 74% | 24.0 | 8 | 192.0 | 1380 | 7.19 | ||
| 80% | 24.0 | 10 | 240.0 | 1590 | 6.63 | ||
| 100% | 24.0 | 11.7 | 280.8 | 1730 | 6.16 | ||
| CF1555TM | 50% | 24.0 | 2.5 | 60.0 | 680 | 11.33 | 62℃ |
| 56% | 24.0 | 4 | 96.0 | 890 | 9.27 | ||
| 63% | 24.0 | 6 | 144.0 | 1190 | 8.26 | ||
| 69% | 24.0 | 8 | 192.0 | 1460 | 7.60 | ||
| 74% | 24.0 | 10 | 240.0 | 1650 | 6.88 | ||
| 80% | 24.0 | 12 | 288.0 | 1810 | 6.28 | ||
| 100% | 24.0 | 13.9 | 333.6 | 2030 | 6.09 | ||
Spesifikasi Motor MT3508 600KV
Tarikan maksimal：1810g
Volt: 16.0V(4S)
ESC yang disarankan: 20A~40A
Daya Maksimum：323,2W
Menopang yang Disarankan: CF1447TM, CF1555TM prop
| MT3510-600KV | |||||||
| Menopang（inci） | Mencekik（%） | Tegangan（V） | Beban Saat Ini（A） | Kekuatan (W) | Tarik(g) | Efisiensi (g/W) | Suhu (dalam beban throttle penuh 1 menit) |
| CF1238 | 50% | 16.0 | 2.1 | 33.6 | 390 | 11.61 | 42℃ |
| 54% | 16.0 | 3 | 48.0 | 520 | 10.83 | ||
| 58% | 16.0 | 4 | 64.0 | 620 | 9.69 | ||
| 64% | 16.0 | 6 | 96.0 | 840 | 8.75 | ||
| 70% | 16.0 | 8 | 128.0 | 1020 | 7.97 | ||
| 76% | 16.0 | 10 | 160.0 | 1190 | 7.44 | ||
| 81% | 16.0 | 12 | 192.0 | 1310 | 6.82 | ||
| 100% | 16.0 | 13.6 | 217.6 | 1420 | 6.53 | ||
| CF1447 | 50% | 16.0 | 3.7 | 59.2 | 620 | 10.47 | 52℃ |
| 51% | 16.0 | 4 | 64.0 | 640 | 10.00 | ||
| 56% | 16.0 | 6 | 96.0 | 840 | 8.75 | ||
| 61% | 16.0 | 8 | 128.0 | 1030 | 8.05 | ||
| 65% | 16.0 | 10 | 160.0 | 1190 | 7.44 | ||
| 68% | 16.0 | 12 | 192.0 | 1300 | 6.77 | ||
| 72% | 16.0 | 14 | 224.0 | 1450 | 6.47 | ||
| 77% | 16.0 | 16 | 256.0 | 1560 | 6.09 | ||
| 81% | 16.0 | 18 | 288.0 | 1670 | 5.80 | ||
| 100% | 16.0 | 20.2 | 323.2 | 1810 | 5.60 | ||
Spesifikasi Motor MT3508 700KV
Tarikan maksimal：1720g
Volt: 16.0V(4S)
ESC yang disarankan: 20A~40A
Daya Maksimum：299,2W
Menopang yang Disarankan: CF1238, CF1447 inci prop
| MT3510-700KV | |||||||
| Menopang（inci） | Mencekik（%） | Tegangan（V） | Beban Saat Ini（A） | Kekuatan (W) | Tarik(g) | Efisiensi (g/W) | Suhu (dalam beban throttle penuh 1 menit) |
| CF1238 | 50% | 12.0 | 2 | 24.0 | 270 | 11.25 | 41℃ |
| 65% | 12.0 | 4 | 48.0 | 460 | 9.58 | ||
| 75% | 12.0 | 6 | 72.0 | 610 | 8.47 | ||
| 75% | 12.0 | 8 | 96.0 | 740 | 7.71 | ||
| 85% | 12.0 | 10 | 120.0 | 860 | 7.17 | ||
| 100% | 12.0 | 11.6 | 139.2 | 940 | 6.75 | ||
| CF1447 | 50% | 12.0 | 1.9 | 22.8 | 290 | 12.72 | 42℃ |
| 60% | 12.0 | 4 | 48.0 | 480 | 10.00 | ||
| 67% | 12.0 | 6 | 72.0 | 650 | 9.03 | ||
| 74% | 12.0 | 8 | 96.0 | 780 | 8.13 | ||
| 80% | 12.0 | 10 | 120.0 | 920 | 7.67 | ||
| 100% | 12.0 | 11.7 | 140.4 | 1030 | 7.34 | ||
| CF1555TM | 50% | 12.0 | 4.1 | 49.2 | 560 | 11.38 | 53℃ |
| 55% | 12.0 | 6 | 72.0 | 730 | 10.14 | ||
| 60% | 12.0 | 8 | 96.0 | 890 | 9.27 | ||
| 63% | 12.0 | 10 | 120.0 | 1030 | 8.58 | ||
| 67% | 12.0 | 12 | 144.0 | 1150 | 7.99 | ||
| 70% | 12.0 | 14 | 168.0 | 1260 | 7.50 | ||
| 74% | 12.0 | 16 | 192.0 | 1350 | 7.03 | ||
| 78% | 12.0 | 18 | 216.0 | 1470 | 6.81 | ||
| 81% | 12.0 | 20 | 240.0 | 1560 | 6.50 | ||
| 100% | 12.0 | 22.4 | 268.8 | 1660 | 6.18 | ||
| CF1147 | 50% | 16.0 | 3.3 | 52.8 | 490 | 9.28 | 43℃ |
| 53% | 16.0 | 4 | 64.0 | 560 | 8.75 | ||
| 59% | 16.0 | 6 | 96.0 | 760 | 7.92 | ||
| 63% | 16.0 | 8 | 128.0 | 920 | 7.19 | ||
| 67% | 16.0 | 10 | 160.0 | 1050 | 6.56 | ||
| 72% | 16.0 | 12 | 192.0 | 1210 | 6.30 | ||
| 77% | 16.0 | 14 | 224.0 | 1330 | 5.94 | ||
| 81% | 16.0 | 16 | 256.0 | 1460 | 5.70 | ||
| 100% | 16.0 | 18.1 | 289.6 | 1550 | 5.35 | ||
| CF1238 | 50% | 16.0 | 3.2 | 51.2 | 520 | 10.16 | 45℃ |
| 53% | 16.0 | 4 | 64.0 | 610 | 9.53 | ||
| 58% | 16.0 | 6 | 96.0 | 820 | 8.54 | ||
| 63% | 16.0 | 8 | 128.0 | 970 | 7.58 | ||
| 67% | 16.0 | 10 | 160.0 | 1150 | 7.19 | ||
| 71% | 16.0 | 12 | 192.0 | 1310 | 6.82 | ||
| 76% | 16.0 | 14 | 224.0 | 1450 | 6.47 | ||
| 80% | 16.0 | 16 | 256.0 | 1590 | 6.21 | ||
| 84% | 16.0 | 18 | 288.0 | 1690 | 5.87 | ||
| 100% | 16.0 | 18.7 | 299.2 | 1720 | 5.75 | ||
