4108 Motor MultiRotor

4108 RC Brushless Motor untuk Drone FPV, Drone Kelas X, Drone Pertanian

Fitur:
Magnet Tingkat 48SH
Tes Rotor Seimbang Presisi
Desain Motor Torsi Tinggi 12N14P
Bel Aluminium CNC 6061-T6
Bantalan Impor RPM Tinggi (NSK/NMB).
Gulungan Kawat Tembaga Tahan Suhu Tinggi

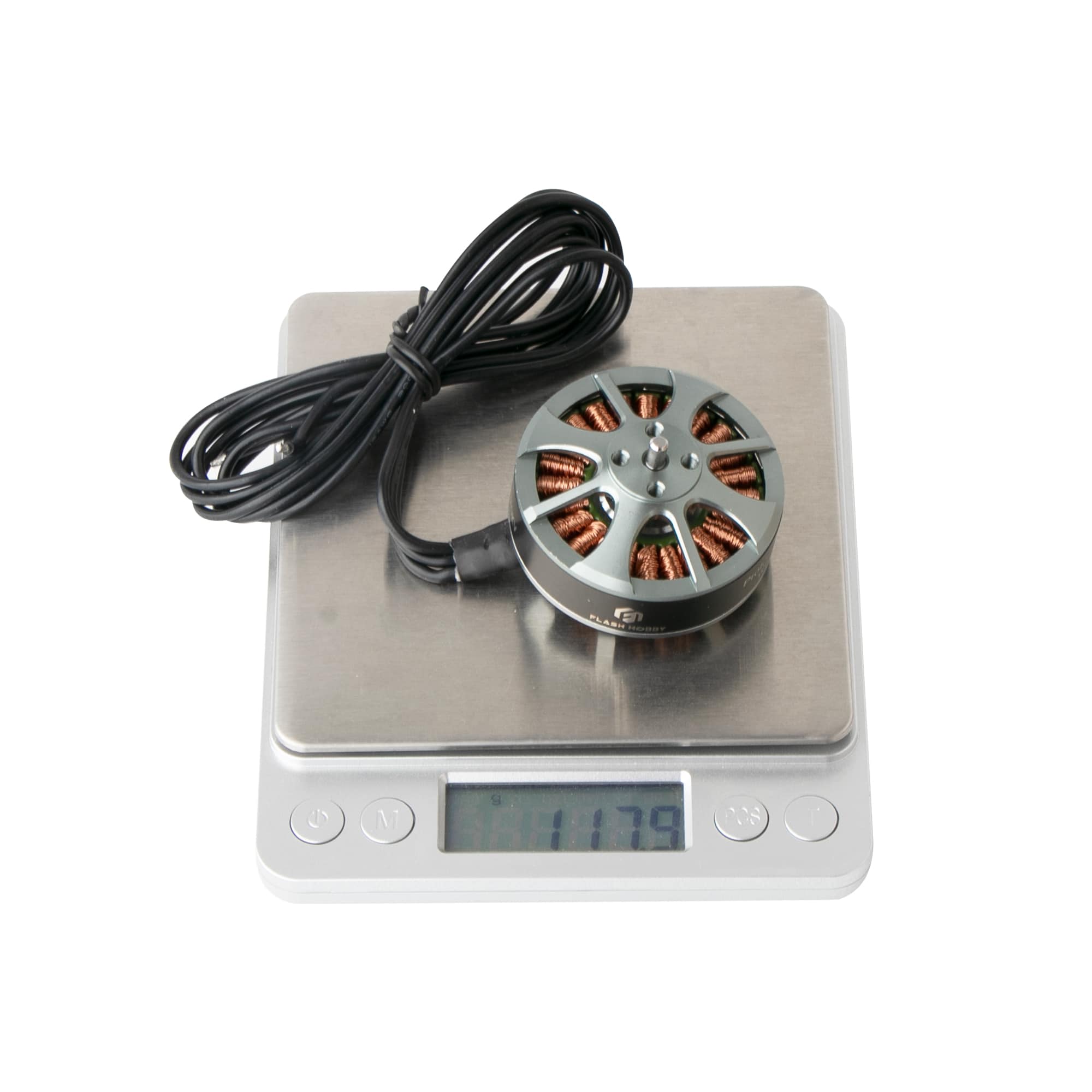

âBerat: 112,0g (termasuk kabel)
âUkuran Motor: 47 x 25,8mm
âDiameter Poros: 4.0mm
âMotor Mount: 19*25mm(M3*4)
âKonfigurasi: 24N22P
âKabel Motor: 18#AWG 220mm
âNilai KV: 380KV, 500KV, 620KV atau KV yang disesuaikan

âDirekomendasikan: aplikasi penyangga 12~15 inci

Spesifikasi Motor MT4108 380KV
Max pullï¼2010g
Volt ï¼22.2V(6S)
ESC yang disarankan: 20A~40A
Daya Maksimum: 339,7W
Menopang yang Disarankan: Prop CF1447TM, CF1555TM Inch

MT4108-380KV
Menopang（inci）	Mencekik（%）	Tegangan（V）	Muat Arus（A）	Daya (W)	Tarik(g)	Efisiensi (g/BB)	Suhu (dalam beban throttle penuh 1 menit)
CF1238	44%	22.2	1	22.2	260	11.71	42℃
	55%	22.2	2	44.4	460	10.36
	62%	22.2	3	66.6	640	9.61
	67%	22.2	4	88.8	750	8.45
	73%	22.2	5	111.0	890	8.02
	76%	22.2	6	133.2	1030	7.73
	80%	22.2	7	155.4	1140	7.34
	100%	22.2	8	177.6	1260	7.09
CF1447	41%	22.2	1	22.2	280	12.61	65℃
	48%	22.2	2	44.4	500	11.26
	53%	22.2	3	66.6	660	9.91
	57%	22.2	4	88.8	810	9.12
	61%	22.2	5	111.0	930	8.38
	64%	22.2	6	133.2	1060	7.96
	67%	22.2	7	155.4	1180	7.59
	70%	22.2	8	177.6	1260	7.09
	77%	22.2	10	222.0	1470	6.62
	82%	22.2	12	266.4	1660	6.23
	100%	22.2	13.2	293.0	1760	6.01
CF1555TM	40%	22.2	1	22.2	320	14.41	79℃
	46%	22.2	2	44.4	530	11.94
	50%	22.2	3	66.6	700	10.51
	54%	22.2	4	88.8	870	9.80
	58%	22.2	5	111.0	1010	9.10
	60%	22.2	6	133.2	1120	8.41
	63%	22.2	7	155.4	1240	7.98
	66%	22.2	8	177.6	1360	7.66
	71%	22.2	10	222.0	1540	6.94
	76%	22.2	12	266.4	1720	6.46
	82%	22.2	14	310.8	1890	6.08
	100%	22.2	15.3	339.7	2010	5.92

Spesifikasi Motor MT4108 500KV
Max pullï¼2090g
Volt ï¼22.2V(6S)
ESC yang disarankan: 20A~40A
Daya Maksimum: 366,3W
Penyangga yang Disarankan: Penyangga CF1147TM, CF1238 Inch

MT4108-500KV
Menopang（inci）	Mencekik（%）	Tegangan（V）	Muat Arus（A）	Daya (W)	Tarik(g)	Efisiensi (g/BB)	Suhu (dalam beban throttle penuh 1 menit)
CF1238	44%	14.8	1	14.8	200	13.51	33℃
	55%	14.8	2	29.6	360	12.16
	61%	14.8	3	44.4	480	10.81
	66%	14.8	4	59.2	600	10.14
	71%	14.8	5	74.0	710	9.59
	75%	14.8	6	88.8	810	9.12
	85%	14.8	8	118.4	980	8.28
	100%	14.8	8.6	127.3	1010	7.94
CF1447	41%	14.8	1	14.8	220	14.86	45℃
	48%	14.8	2	29.6	380	12.84
	53%	14.8	3	44.4	510	11.49
	57%	14.8	4	59.2	650	10.98
	60%	14.8	5	74.0	740	10.00
	63%	14.8	6	88.8	840	9.46
	69%	14.8	8	118.4	1010	8.53
	75%	14.8	10	148.0	1120	7.57
	80%	14.8	12	177.6	1290	7.26
	100%	14.8	13.9	205.7	1420	6.90
CF1555TM	39%	14.8	1	14.8	230	15.54	55℃
	46%	14.8	2	29.6	400	13.51
	50%	14.8	3	44.4	550	12.39
	54%	14.8	4	59.2	680	11.49
	57%	14.8	5	74.0	790	10.68
	60%	14.8	6	88.8	890	10.02
	65%	14.8	8	118.4	1080	9.12
	70%	14.8	10	148.0	1240	8.38
	75%	14.8	12	177.6	1390	7.83
	80%	14.8	14	207.2	1520	7.34
	100%	14.8	16.3	241.2	1690	7.01
CF1147	38%	22.2	1	22.2	280	12.61	54℃
	46%	22.2	2	44.4	470	10.59
	51%	22.2	3	66.6	610	9.16
	55%	22.2	4	88.8	750	8.45
	58%	22.2	5	111.0	860	7.75
	62%	22.2	6	133.2	970	7.28
	66%	22.2	8	177.6	1180	6.64
	71%	22.2	10	222.0	1360	6.13
	76%	22.2	12	266.4	1540	5.78
	81%	22.2	14	310.8	1690	5.44
	100%	22.2	16.1	357.4	1850	5.18
CF1238	37%	22.2	1	22.2	280	12.61	61â
	46%	22.2	2	44.4	490	11.04
	51%	22.2	3	66.6	660	9.91
	54%	22.2	4	88.8	790	8.90
	58%	22.2	5	111.0	930	8.38
	61%	22.2	6	133.2	1060	7.96
	66%	22.2	8	177.6	1290	7.26
	71%	22.2	10	222.0	1510	6.80
	75%	22.2	12	266.4	1690	6.34
	79%	22.2	14	310.8	1870	6.02
	85%	22.2	16	355.2	2050	5.77
	100%	22.2	16.5	366.3	2090	5.71

Spesifikasi Motor MT4108 620KV
Max pullï¼1830g
Volt ï¼14.8V(4S)
ESC yang disarankan: 20A~40A
Daya Maksimum: 296,0W
Menopang yang Disarankan: Prop CF1447TM, CF1555TM Inch

MT4108-620KV
Menopang（inci）	Mencekik（%）	Tegangan（V）	Muat Arus（A）	Daya (W)	Tarik(g)	Efisiensi (g/BB)	Suhu (dalam beban throttle penuh 1 menit)
CF1238	39%	14.8	1	14.8	200	13.51	45℃
	49%	14.8	2	29.6	350	11.82
	55%	14.8	3	44.4	480	10.81
	60%	14.8	4	59.2	590	9.97
	63%	14.8	5	74.0	690	9.32
	67%	14.8	6	88.8	780	8.78
	73%	14.8	8	118.4	960	8.11
	79%	14.8	10	148.0	1130	7.64
	100%	14.8	12.1	179.1	1280	7.15
CF1447	37%	14.8	1	14.8	210	14.19	55℃
	44%	14.8	2	29.6	370	12.50
	48%	14.8	3	44.4	490	11.04
	51%	14.8	4	59.2	610	10.30
	54%	14.8	5	74.0	720	9.73
	56%	14.8	6	88.8	810	9.12
	62%	14.8	8	118.4	990	8.36
	66%	14.8	10	148.0	1150	7.77
	70%	14.8	12	177.6	1270	7.15
	74%	14.8	14	207.2	1390	6.71
	78%	14.8	16	236.8	1510	6.38
	80%	14.8	17	251.6	1570	6.24
	100%	14.8	19.3	285.6	1710	5.99
CF1555TM	36%	14.8	1	14.8	220	14.86	56℃
	42%	14.8	2	29.6	400	13.51
	45%	14.8	3	44.4	520	11.71
	48%	14.8	4	59.2	650	10.98
	51%	14.8	5	74.0	760	10.27
	53%	14.8	6	88.8	850	9.57
	58%	14.8	8	118.4	1050	8.87
	62%	14.8	10	148.0	1210	8.18
	66%	14.8	12	177.6	1350	7.60
	69%	14.8	14	207.2	1490	7.19
	73%	14.8	16	236.8	1610	6.80
	76%	14.8	18	266.4	1710	6.42
	80%	14.8	20	296.0	1830	6.18
