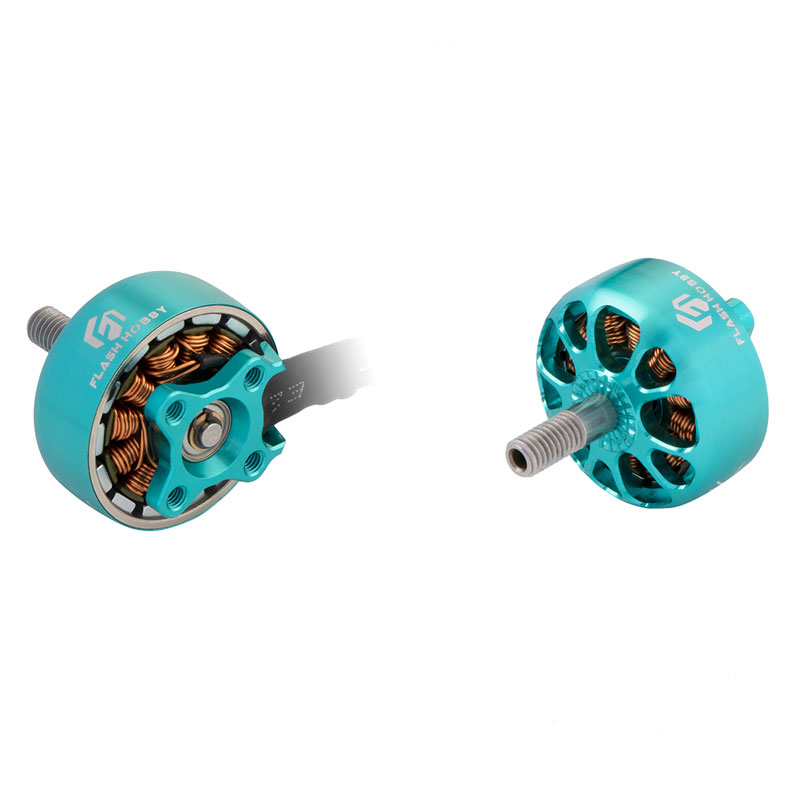

K2207.5 Motor DC Tanpa Sikat
K2207.5 Motor DC Tanpa Sikat
●Berat: 36g (termasuk kabel)
●Ukuran Motor: 28,9x 33,1mm
●Diameter Stator: 22mm
●Tinggi Stator: 7mm
●Diameter Poros: 3mm
●Pola Sekrup Pemasangan: 16x16mm(M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 20#AWG 150mm
●Bantalan NSK
●6082 Lonceng aluminium
●Nilai KV: 1900KV, 2500KV, 2750KV atau KV khusus
●Rekomendasikan: aplikasi penyangga 5~6 inci
●Berat: 36g (termasuk kabel)
●Ukuran Motor: 28,9x 33,1mm
●Diameter Stator: 22mm
●Tinggi Stator: 7mm
●Diameter Poros: 3mm
●Pola Sekrup Pemasangan: 16x16mm(M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 20#AWG 150mm
●Bantalan NSK
●6082 Lonceng aluminium
●Nilai KV: 1900KV, 2500KV, 2750KV atau KV khusus
●Rekomendasikan: aplikasi penyangga 5~6 inci
mengirimkan permintaan
Deskripsi Produk
K2207.5 Spesifikasi Motor DC Tanpa Sikat
Tarikan maksimal：1619g（6S/GF6040 3R）
Volt:DC16~25.2V/Li-Po(3-6S)
Tanpa Arus Beban/Arus Beban Maksimum：0,95A/33,47A
Tanpa Kecepatan Beban (RPM）：0~1900PRM/1v
Daya Maksimum：792,2W
Spesifikasi Motor 2207.5-2500KV
Tarikan maksimal：1500g（4S/GF5040 3R）
Volt:DC11.1~16.8 V/Li-Po(3-4S)
Tanpa Arus Beban/Arus Beban Maksimum：1,54A/33,74A
Tanpa Kecepatan Beban (RPM):0~2500PRM/1v
Daya Maksimum：677,5W
Spesifikasi Motor 2207.5-2750KV
Tarikan maksimal：1397g（4S/GF6045 2R）
Volt:DC11.1~16.8 V/Li-Po(3-4S)
Tanpa Arus Beban/Arus Beban Maksimum：1,71A/34,48A
Tanpa Kecepatan Beban (RPM):0~2750PRM/1v
Daya Maksimum： 537,9W
Kisaran Suhu Kerja：-0℃~+80℃
Metode Kontrol: Gunakan ESC dan Sesuaikan sinyal PWM Untuk Kontrol, Rentang Penyesuaian PWM 900- 2100US
Tipe Motor: Motor Tanpa Sikat Berlari Cepat, Motor Tiga Fase
Gambar Motorik:
Data Uji:
|
TIDAK. |
Menopang |
Mencekik |
Volt (V) |
Ampli (A) |
Watt (W) |
Dorongan (g) |
Efisiensi (g/W) |
Suhu pengoperasian (℃) |
|
K2207.5 1900KV |
GF5040
2R
|
50% |
23.94 |
6.22 |
148.9 |
515 |
3.46 |
54.5℃ |
|
60% |
23.94 |
10.47 |
250.7 |
726 |
2.90 |
|||
|
70% |
23.75 |
15.49 |
367.9 |
947 |
2.57 |
|||
|
80% |
23.64 |
22.05 |
521.3 |
1211 |
2.32 |
|||
|
90% |
23.51 |
28.4 |
667.7 |
1411 |
2.11 |
|||
|
100% |
23.56 |
28.4 |
669.1 |
1406 |
2.10 |
|||
|
K2207.5 1900KV |
GF5047
3R
|
50% |
23.67 |
7.7 |
182.3 |
577 |
3.17 |
67.4℃ |
|
60% |
23.48 |
12.97 |
304.5 |
817 |
2.68 |
|||
|
70% |
23.45 |
18.6 |
436.2 |
1012 |
2.32 |
|||
|
80% |
23.10 |
26.1 |
602.9 |
1267 |
2.10 |
|||
|
90% |
23.18 |
35.83 |
830.5 |
1479 |
1.78 |
|||
|
100% |
23.16 |
35.43 |
820.6 |
1462 |
1.78 |
|||
|
K2207.5 1900KV |
GF5143
3R
|
50% |
23.67 |
7.09 |
167.8 |
564 |
3.36 |
56.5℃ |
|
60% |
23.48 |
11.76 |
276.1 |
791 |
2.86 |
|||
|
70% |
23.43 |
17.93 |
420.1 |
1018 |
2.42 |
|||
|
80% |
23.18 |
25.49 |
590.9 |
1281 |
2.17 |
|||
|
90% |
23.16 |
33.13 |
767.3 |
1492 |
1.94 |
|||
|
100% |
23.13 |
32.79 |
758.4 |
1470 |
1.94 |
|||
|
K2207.5 1900KV |
GF6040
3R
|
50% |
24.00 |
7.7 |
184.8 |
661 |
3.58 |
94.5℃ |
|
60% |
24.08 |
12.84 |
309.2 |
937 |
3.03 |
|||
|
70% |
23.97 |
18.26 |
437.7 |
1169 |
2.67 |
|||
|
80% |
23.75 |
25.09 |
595.9 |
1460 |
2.45 |
|||
|
90% |
23.56 |
33.94 |
799.6 |
1647 |
2.06 |
|||
|
100% |
23.67 |
33.47 |
792.2 |
1619 |
2.04 |
|||
|
K2207.5 2500KV |
GF5040
2R
|
50% |
16.03 |
5.61 |
89.9 |
449 |
4.99 |
45.4℃ |
|
60% |
16.23 |
9.46 |
153.5 |
611 |
3.98 |
|||
|
70% |
16.12 |
14.66 |
236.3 |
794 |
3.36 |
|||
|
80% |
15.90 |
19.41 |
308.6 |
959 |
3.11 |
|||
|
90% |
15.93 |
24.82 |
395.4 |
1108 |
2.80 |
|||
|
100% |
15.76 |
24.82 |
391.2 |
1109 |
2.84 |
|||
|
K2207.5 2500KV |
GF5047
3R
|
50% |
16.14 |
7.03 |
113.5 |
504 |
4.44 |
52.1℃ |
|
60% |
16.44 |
12.09 |
198.8 |
690 |
3.47 |
|||
|
70% |
15.95 |
18.06 |
288.1 |
876 |
3.04 |
|||
|
80% |
15.79 |
25.36 |
400.4 |
1050 |
2.62 |
|||
|
90% |
15.03 |
32.18 |
483.7 |
1202 |
2.49 |
|||
|
100% |
14.32 |
31.91 |
457.0 |
1190 |
2.60 |
|||
|
K2207.5 2500KV |
GF5143
3R
|
50% |
16.31 |
6.35 |
103.6 |
482 |
4.65 |
53℃ |
|
60% |
16.63 |
11 |
182.9 |
664 |
3.63 |
|||
|
70% |
15.87 |
16.84 |
267.3 |
869 |
3.25 |
|||
|
80% |
16.63 |
23.06 |
383.5 |
1041 |
2.71 |
|||
|
90% |
15.93 |
29.75 |
473.9 |
1196 |
2.52 |
|||
|
100% |
15.71 |
29.68 |
466.3 |
1195 |
2.56 |
|||
|
K2207.5 2500KV |
GF6040 3R |
50% |
16.31 |
6.76 |
110.3 |
559 |
5.07 |
54.7℃ |
|
60% |
16.14 |
11.69 |
188.7 |
768 |
4.07 |
|||
|
70% |
16.03 |
17.66 |
283.1 |
1002 |
3.54 |
|||
|
80% |
16.85 |
24.01 |
404.6 |
1186 |
2.93 |
|||
|
90% |
16.44 |
30.83 |
506.8 |
1375 |
2.71 |
|||
|
100% |
14.87 |
30.56 |
454.4 |
1363 |
3.00 |
|||
|
K2207.5 2500KV |
GF5040
3R
|
50% |
20.76 |
9.73 |
202.0 |
623 |
3.08 |
64.8℃ |
|
60% |
20.71 |
14.89 |
308.4 |
854 |
2.77 |
|||
|
70% |
20.68 |
19.14 |
395.8 |
1051 |
2.66 |
|||
|
80% |
20.57 |
26.37 |
542.4 |
1291 |
2.38 |
|||
|
90% |
19.84 |
34.07 |
675.9 |
1521 |
2.25 |
|||
|
100% |
20.08 |
33.74 |
677.5 |
1500 |
2.21 |
|||
|
K2207.5 2500KV |
GF5047 3R |
50% |
20.82 |
12.77 |
265.9 |
691 |
2.60 |
80.3℃ |
|
60% |
20.76 |
16.91 |
351.1 |
900 |
2.56 |
|||
|
70% |
20.27 |
24.41 |
494.8 |
1142 |
2.31 |
|||
|
80% |
19.49 |
34.28 |
668.1 |
1378 |
2.06 |
|||
|
90% |
19.50 |
43.22 |
842.8 |
1551 |
1.84 |
|||
|
100% |
19.40 |
42.88 |
831.9 |
1513 |
1.82 |
|||
|
K2207.5 2750KV |
GF5040
2R
|
50% |
16.33 |
7.16 |
116.9 |
494 |
4.23 |
52.3℃ |
|
60% |
16.66 |
11.82 |
196.9 |
676 |
3.43 |
|||
|
70% |
16.17 |
17.05 |
275.7 |
848 |
3.08 |
|||
|
80% |
16.09 |
22.86 |
367.8 |
1030 |
2.80 |
|||
|
90% |
16.28 |
29.14 |
474.4 |
1198 |
2.53 |
|||
|
100% |
15.93 |
28.94 |
461.0 |
1190 |
2.58 |
|||
|
K2207.5 2750KV |
GF5047
3R
|
50% |
16.25 |
8.92 |
145.0 |
555 |
3.83 |
56℃ |
|
60% |
16.42 |
14.73 |
241.9 |
740 |
3.06 |
|||
|
70% |
16.25 |
21.98 |
357.2 |
940 |
2.63 |
|||
|
80% |
16.09 |
29.07 |
467.7 |
1105 |
2.36 |
|||
|
90% |
16.66 |
36.91 |
614.9 |
1259 |
2.05 |
|||
|
100% |
14.89 |
36.57 |
544.5 |
1244 |
2.28 |
|||
|
K2207.5 2750KV |
GF5143
3R
|
50% |
16.31 |
8.04 |
131.1 |
526 |
4.01 |
57.2℃ |
|
60% |
16.31 |
13.51 |
220.3 |
721 |
3.27 |
|||
|
70% |
16.25 |
20.76 |
337.4 |
931 |
2.76 |
|||
|
80% |
15.25 |
26.57 |
405.2 |
1088 |
2.69 |
|||
|
90% |
15.65 |
34.01 |
532.3 |
1261 |
2.37 |
|||
|
100% |
15.71 |
33.67 |
529.0 |
1243 |
2.35 |
|||
|
K2207.5 2750KV |
GF6042
3R
|
50% |
16.28 |
11.69 |
190.3 |
696 |
3.66 |
80.1℃ |
|
60% |
16.36 |
17.99 |
294.3 |
908 |
3.09 |
|||
|
70% |
16.74 |
26.78 |
448.3 |
1080 |
2.41 |
|||
|
80% |
16.03 |
35.22 |
564.6 |
1215 |
2.15 |
|||
|
90% |
15.41 |
43.42 |
669.1 |
1317 |
1.97 |
|||
|
100% |
15.84 |
42.68 |
676.1 |
1284 |
1.90 |
|||
|
K2207.5 2750KV |
GF6040
3R
|
50% |
16.96 |
8.65 |
146.7 |
602 |
4.10 |
65℃ |
|
60% |
17.26 |
14.26 |
246.1 |
827 |
3.36 |
|||
|
70% |
16.50 |
21.17 |
349.3 |
1053 |
3.01 |
|||
|
80% |
16.17 |
27.32 |
441.8 |
1245 |
2.82 |
|||
|
90% |
16.01 |
35.02 |
560.7 |
1422 |
2.54 |
|||
|
100% |
15.60 |
34.48 |
537.9 |
1397 |
2.60 |
|||
|
Catatan: Kondisi pengujian suhu adalah suhu permukaan motor dalam throttle 100% saat motor berjalan 15 detik. Suhu lingkungan 26℃ |
||||||||
Detil Produk:
Instruksi yang terhubung
Aplikasi:
Penuh sesak:
Motor Flashhobby X1 , M2X7mm X8, Mur M5 X1
